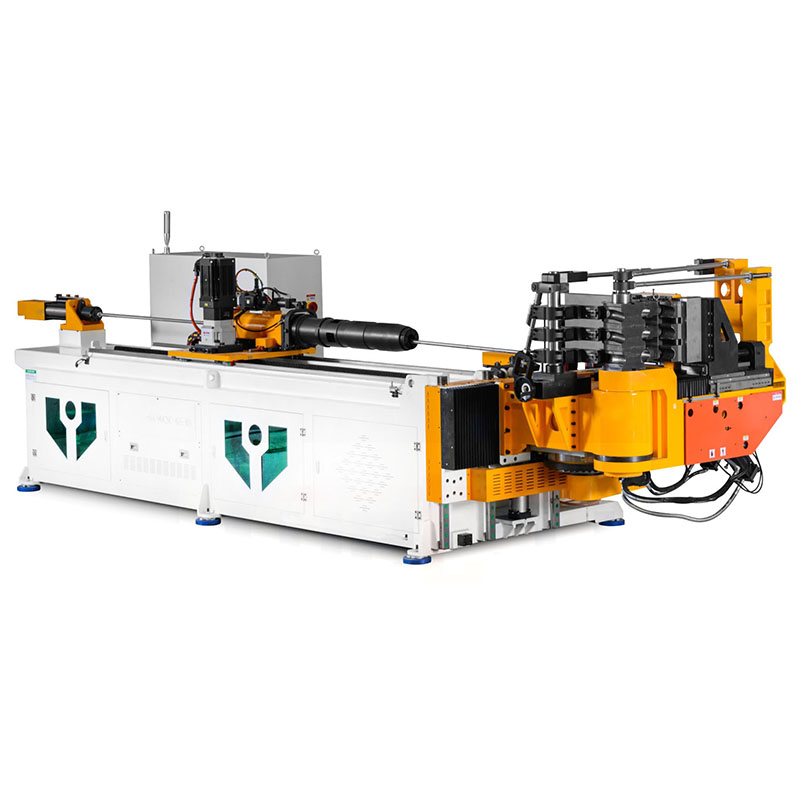

CNC servo pipe bending machine – Longbo bending machine

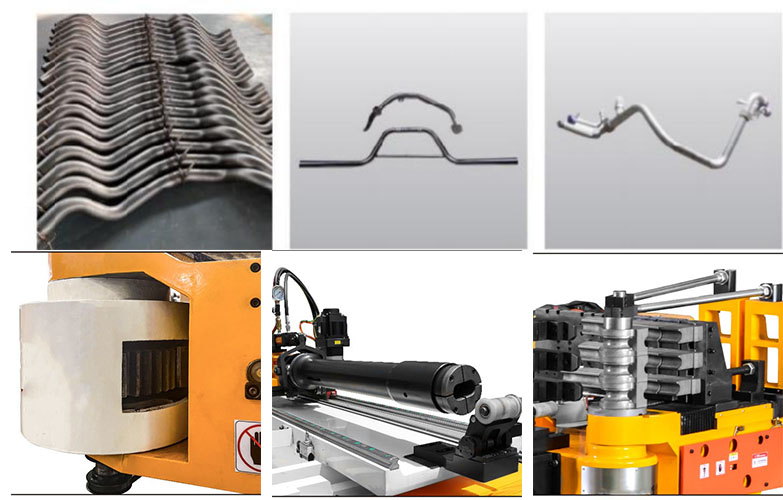

The 5-13 axis servo motor controls accurately.The left-turn and right-turn functions of 1-4 layer molds can be realized.Large radius or spiral products can be bent,with push bending function.Industrial computer system with 3D interference checking function.The machine can be connected to a robot and a three-dimensional measuring instrument.

Model	Unit	CNC18	CNC25	CNC38	CNC50	CNC65	CNC76	CNC90	CNC110	CNC130	CNC168	CNC219
Maxmum bending capacn	mm	φ18×1.6	φ25×2.0	φ38×1.8	φ50×2.0	φ65×2.5	φ75×2.5	φ89×2.5	φ110×5.0	φ130×5.0	φ168×16.5	φ219×16
Round tubelstainless steel tube	mm	φ18×0.8	φ25×1.8	φ38×1.2	φ50×1.3	φ65×1.6	φ75×1.9	φ89×1.5	φ110×2.0	φ130×2.5	168×4.0	219×14
Square tube/metal	mm	15×1.2	16×2.5	30×1.5	40×1.8	50×2.3	60×2.5	75×2.5	90×2.0	90×6.0	110×6.5	189×14
Maxmum bend outer dameter for reciprocating(can be customized)	mm	φ10	φ25	φ38	φ50	φ65	φ70	φ70	φ90	φ114	φ114	φ129
Bendng radius range	mm	10-80	20-100	25-150	30-230	30~320	40-250	40-250	50-2800	80-500	90~500	120-800
Bending radius rangel Square tube	mm	15~70	20-87	25~130	30-19	35-210	40~240	45~105	50~300	80~430	90~410	120~801
Bending angle range	degree	190	190	190	190	190	190	190	190	190	190	190
Two-layer R maxmum difference R1-R2	mm	20	50	50	65	75	85	85	100	130	145	170
Maxmum efectve dstance	mm	1200	1500	3200	3200	3200	4000	4000	4000	5000	6000	1400
Workbench height (mold center to ground height)	mm	1100	900	1100	1100	1100	1125	1100	1250	1300	1400	1400
Mold center ine heigh	mm	22	30	28	40	50	55	65	80	90	120	165
Bending \|B.0.Dspeed	deg/sec	220	220	160	105	100	75	75	75	70	38	38
Bending [B.0.D]precision	degree	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.15	±0.15
Feeding [D.B.B]speed	mm/sec	2000	2000	1400	1400	200~900	200~900	900	900	900	800	800
Feedng [D.B.B]precisio	mm	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.15	±0.15
Turning tube [P.0.B.]speed	deg/sec	300	300	300	200	200	200	200	200	200	90	90
Turning tube [P.0.B]precision	degree	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.15	±0.15
Hydraulic system motor	kw	1.7	2.2	2.2	3.8	5.5	11	15	22	22	30×2	45×2+11
Machine wdth	mm	900	900	900	900	1150	1500	1500	1700	2000	2200	2300
Machine heg	mm	1250	1250	1300	1300	1400	1400	1500	2100	2100	2300	2300
Machine length	mm	2600	2900	4300	4300	5800	6800	6800	7000	9000	10000	11000
Machine weight	kg	900	1000	2800	3200	5800	7500	7900	12000	13000	29000	38000
