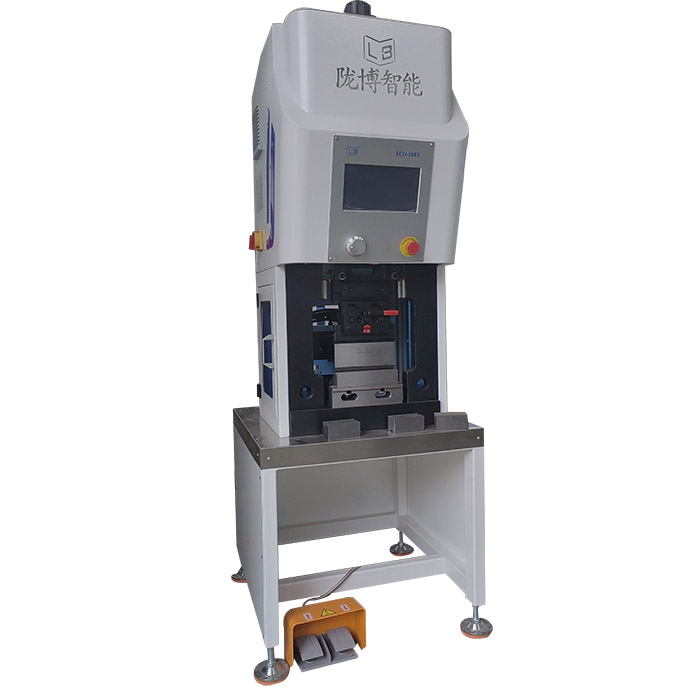

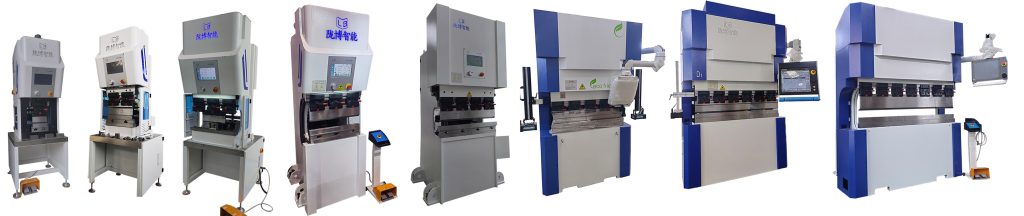

EP series Mini Electric Press Brake is a machine that the servo motor advances the heavy-duty ball screw to drive the slider to do reciprocating motion, and then drive the upper mould on the slider to apply force to the lower mould on the workbench, so as to bend the mental plate according to the required shape and size. The Mini Electric Press Brake produced by Longbo Company has the following characteristics.The Electric Press Brake produced by Longbo Company has the following characteristics: first, the control system adopts the full closed-loop control mode: the drive device is the servo motor, the feedback device is the magnetic scale, the system could monitor the real-time position of the slider, has reached the required position. Second, theElectric Press Brake will automatically output the proper power electrical energy according to the working conditions, so it is particularly power-saving. Third, environment-friendly and environment protection: no need to use and replace the hydraulic pressing oil, make it free from the pollution of the environment by waste hydraulic,and it can avoid the impact of environmental temperature on the machine. Our company produces models with pressures ranging from 3 tons to 60 tons and lengths ranging from 200mm to 2500 millimeter.

Model | Press Capacity KN | Processing Length mm | Bending Stroke mm | back gauge Stroke mm | Spindle Power KW | Fast Fall Speed mm/s | Feeding Speed mm/s | Opening Height mm | Depth of Throat mm | Distance between Stand Column mm |
---|---|---|---|---|---|---|---|---|---|---|
EP03-02 | 30 | 200 | 120 | 150 | 2 | 200 | <30 | 420 | - | 250 |
EP06-04 | 60 | 400 | 120 | 150 | 3 | 200 | <30 | 420 | 150 | 370 |
EP12-06 | 120 | 600 | 120 | 150 | 5.6 | 200 | <30 | 420 | 150 | 520 |
EP18-08 | 180 | 800 | 120 | 300 | 7.5 | 200 | <30 | 420 | 150 | 770 |
EP12-06R | 120 | 600 | 120 | 150 | 2X3 | 200 | <30 | 420 | 150 | 520 |
EP20-10 | 200 | 1050 | 120 | 300 | 11 | 200 | <30 | 430 | 250 | 930 |
EP30-12 | 300 | 1250 | 150 | 500 | 13 | 200 | <30 | 470 | 250 | 1150 |
EP35-12 | 350 | 1250 | 150 | 500 | 13 | 200 | <20 | 470 | 250 | 1150 |
EP40-13 | 400 | 1300 | 150 | 500 | 15 | 200 | <20 | 470 | 300 | 1200 |
EP50-20 | 500 | 1600 | 150 | 500 | 30 | 200 | <20 | 530 | 350 | 1400 |
EP60-25 | 600 | 2500 | 150 | 500 | 30 | 200 | <20 | 530 | 350 | 2300 |
EP80-32 | 800 | 3200 | 150 | 500 | 42 | 200 | <20 | 530 | 350 | 2300 |
